Pressure vessels and industrial boilers operate under demanding conditions. They may contain steam, hot water, gases, or other fluids at elevated pressures and temperatures. A failure in a weld can therefore have serious consequences. For this reason, welding is not simply one step in the manufacturing process—it is fundamental to the strength, reliability, safety, and service life of the finished equipment.

Understanding the Importance of Welded Construction

Large industrial boilers and pressure vessels are generally too large and complex to manufacture from a single piece of steel. Instead, they are constructed from individual plates, tubes, pipes, heads, nozzles, supports, and other components. These components must be joined together to create a pressure-tight structure capable of operating safely for years.

Welding provides the permanent connections necessary to create that structure.

Unlike mechanical fasteners, a properly executed weld can create a continuous metal connection between components. In a pressure vessel or boiler, this continuity is extremely important because the equipment must contain pressure without allowing leaks or developing structural weaknesses.

A boiler, for example, may contain hundreds or thousands of welded joints depending on its design. Water-tube boilers contain extensive networks of welded tubes, headers, drums, and piping. Fire-tube boilers likewise require carefully fabricated pressure vessels, tube sheets, tubes, and connections. Every one of these welds can contribute to the overall integrity of the equipment.

Welding Pressure Vessel Steel

The materials used in industrial boilers and pressure vessels must withstand heat, pressure, corrosion, and mechanical stresses. Carbon steel, alloy steel, and stainless steel are among the materials commonly encountered in industrial fabrication.

Each material presents different welding considerations.

The welder and welding engineer must consider the material’s chemical composition, thickness, heat treatment requirements, welding procedure, filler metal, preheating requirements, and post-weld treatment. Simply turning on a welding machine and joining two pieces of steel is not sufficient for pressure-retaining equipment.

Heat input is particularly important. Welding introduces intense localized heat into the metal. If that heat is not controlled properly, it can affect the mechanical properties of the material, produce distortion, or contribute to cracking and other defects.

For critical pressure-retaining welds, welding procedures are therefore developed and qualified in advance. These procedures establish the variables that must be controlled so that the finished weld has the required characteristics.

Common Welding Processes

Different welding processes may be used during boiler and pressure-vessel fabrication depending on the application.

Shielded metal arc welding, commonly known as stick welding, has long been used in industrial fabrication because of its versatility and ability to work in many positions.

Gas tungsten arc welding, or TIG welding, provides excellent control and can produce highly precise welds. It is particularly useful where weld quality and cleanliness are critical, including certain piping and root-pass applications.

Gas metal arc welding, commonly called MIG welding, can provide efficient production rates and is widely used in fabrication environments.

Submerged arc welding is another important process in heavy industrial manufacturing. Because the arc is submerged beneath a layer of granular flux, the process can provide high deposition rates and deep penetration. It is especially useful for long, relatively straight welds on heavy plate.

The selection of the welding process depends on factors such as material, thickness, joint design, accessibility, production requirements, and applicable codes and specifications.

Weld Design Is an Engineering Decision

The quality of a finished weld begins long before a welder strikes an arc.

Engineers must determine how components will be joined and how the resulting joint will respond to the stresses created during operation. Joint design can include butt joints, fillet welds, nozzle connections, tube-to-sheet joints, and other configurations.

Pressure vessels are subject to forces that are not always obvious. Internal pressure attempts to expand the vessel, while temperature changes can cause materials to expand and contract. Supports, piping connections, vibration, and thermal cycling can introduce additional stresses.

Weld locations must therefore be considered as part of the overall mechanical design.

The thickness of the materials, weld geometry, penetration requirements, and reinforcement are all important. Proper design helps distribute stresses and reduces the likelihood that a localized weakness will become a point of failure.

The Importance of Welder Qualification

Industrial pressure equipment requires skilled welders who understand much more than the mechanics of welding.

A qualified welder must be capable of consistently producing sound welds under specified conditions. Qualification requirements vary depending on the applicable code, welding process, material, position, and other variables.

Consistency is particularly important in boiler manufacturing. A pressure vessel may contain numerous welds, and each must meet the requirements established for the equipment.

Experienced welders also understand how factors such as travel speed, electrode angle, arc length, amperage, and heat input affect the finished weld. They can recognize conditions that may lead to defects and adjust their technique accordingly.

In critical industrial fabrication, craftsmanship and technology work together. Automated welding systems can provide excellent repeatability in appropriate applications, while experienced welders remain essential for complex joints, repairs, unusual configurations, and situations where manual control is necessary.

Inspection and Non-Destructive Testing

A weld can look good on the outside and still contain an internal defect. That is why inspection plays such an important role in pressure-vessel and boiler fabrication.

Visual inspection is an important first step. Inspectors can identify issues such as cracks, undercut, excessive reinforcement, poor alignment, surface porosity, or other visible irregularities.

Additional non-destructive examination methods may be used when appropriate. These can include radiographic testing, ultrasonic testing, magnetic particle testing, and liquid penetrant testing.

Radiographic testing can reveal certain internal discontinuities by producing an image of the weld. Ultrasonic testing uses sound waves to examine material and identify indications within a weld or surrounding metal. Magnetic particle testing can detect certain surface and near-surface discontinuities in ferromagnetic materials, while liquid penetrant testing can reveal surface-breaking defects.

The particular examination methods used depend on the design, material, applicable requirements, and criticality of the weld.

The objective is straightforward: identify potential problems without damaging the equipment.

Codes and Standards Matter

Industrial boilers and pressure vessels are not fabricated according to guesswork. They are manufactured under detailed engineering and quality requirements.

In the United States, the ASME Boiler and Pressure Vessel Code is particularly important in the design and fabrication of many types of pressure equipment. The applicable requirements establish standards for materials, fabrication, examination, testing, and other aspects of pressure-equipment construction.

Welding procedures and welder qualifications are therefore an integral part of a code-compliant manufacturing program.

Documentation is also important. Industrial equipment often has a substantial record associated with its fabrication, including material certifications, welding procedures, welder qualifications, inspection results, and testing records.

This documentation provides traceability and helps demonstrate that the equipment was manufactured according to the applicable requirements.

Managing Heat and Distortion

One of the challenges of welding large steel structures is controlling distortion.

When metal is heated, it expands. As it cools, it contracts. Because welding creates concentrated areas of intense heat, the resulting expansion and contraction can cause components to move or distort.

Fabricators use carefully planned welding sequences, fixturing, controlled heat input, and other techniques to minimize these effects.

This is especially important when fabricating large pressure vessels. Even a relatively small dimensional change can create alignment problems when additional components are installed.

Welding sequence is therefore an engineering and fabrication consideration rather than simply a matter of convenience.

Welding in Industrial Boiler Manufacturing

Industrial boilers illustrate particularly well why welding quality is so important.

A boiler must safely handle the combination of pressure and heat generated during operation. Depending on its design, it may contain pressure vessels, drums, headers, tubes, piping, tube sheets, nozzles, and numerous welded attachments.

Tube welding is particularly significant. Boiler tubes transfer heat and carry water or steam, depending on the boiler design. A defective tube weld can eventually result in leakage, reduced efficiency, or an operational failure.

Boiler fabrication therefore requires careful coordination among engineers, welders, inspectors, machinists, and quality-control personnel.

The welding process continues to be important after the boiler leaves the fabrication shop as well. Industrial boilers may eventually require repair, modification, or replacement of components. Proper welding procedures are essential during these maintenance operations because repairs can involve pressure-retaining components that must return to reliable service.

Welding and Boiler Repair

Welding is not limited to new equipment.

Industrial boilers operate for years, and components can eventually experience corrosion, erosion, thermal fatigue, cracking, or other forms of wear. Qualified industrial boiler technicians may need to repair or replace damaged sections.

A boiler repair is very different from repairing an ordinary piece of machinery. The technician must understand the original material, the nature of the damage, the operating conditions, and the applicable requirements before determining an appropriate repair procedure.

The repair weld must restore the required mechanical integrity without introducing new problems.

This is one reason experienced industrial boiler companies are so important. Welding expertise must be combined with knowledge of boiler construction, pressure systems, metallurgy, inspection, and safety.

Why Welding Quality Matters for Long-Term Reliability

The ultimate purpose of careful welding is not simply to produce a visually attractive weld. It is to create equipment that can perform reliably under demanding operating conditions.

A well-fabricated pressure vessel should be capable of handling its intended pressure and temperature while resisting the stresses associated with normal operation. An industrial boiler must likewise be able to produce steam or heat safely and consistently.

Quality welding contributes directly to these objectives.

Poor welding, on the other hand, can result in leaks, cracking, premature failures, unplanned shutdowns, expensive repairs, and potentially dangerous operating conditions. The cost of preventing a welding problem during fabrication is generally far less than the cost of dealing with a major failure after equipment has entered service.

The Human Skill Behind Industrial Welding

Modern welding technology has become remarkably sophisticated, but the human element remains critical.

Experienced welders develop an understanding of metal that comes from training and years of practice. They learn how molten metal behaves, how heat moves through a joint, how different materials respond to welding, and how subtle changes in technique can affect the final result.

In pressure-vessel and boiler fabrication, that expertise is particularly valuable.

The best results come from combining skilled personnel with sound engineering, qualified procedures, appropriate materials, modern equipment, careful inspection, and a strong commitment to quality.

Conclusion

Welding is one of the foundations of modern pressure-vessel and industrial-boiler manufacturing. It transforms individual pieces of steel and other materials into large, integrated structures capable of safely containing pressure and operating at elevated temperatures.

From the initial engineering design through material preparation, welding, inspection, testing, and final certification, every stage contributes to the integrity of the finished equipment.

For industrial boilers and pressure vessels, welding is therefore much more than a fabrication technique. It is a critical safety function and a major determinant of equipment reliability, durability, and service life.

When properly engineered and executed, a weld becomes an essential part of the structure itself—strong, dependable, and capable of performing under some of the most demanding conditions found in industrial facilities.

mckennaboiler.com

The post Welding: The Critical Role It Plays in Pressure Vessel and Industrial Boiler Fabrication appeared first on McKenna Boiler.

Why Fall Is Boiler Season

Commercial and industrial boilers can serve many purposes. Depending on the facility and system, they may provide steam or heat for manufacturing processes, sterilization, food processing, laundry, building heating, kitchens, or other essential operations.

When warm weather arrives, some facilities experience reduced demand for heating. That creates an opportunity to inspect, clean, repair, tune, and upgrade equipment while the boiler system isn’t under maximum seasonal demand.

Then autumn arrives.

The system starts working harder.

Buildings need more heat. Process requirements may change. Steam loads can increase. Equipment that seemed perfectly adequate during summer suddenly has to operate for longer periods and at higher loads.

A boiler problem that might have been a minor inconvenience in July can become a major operational problem in October.

That is why the transition into fall is such an important maintenance window.

October Doesn’t Necessarily Cause Boiler Problems

It is worth making an important distinction: October itself doesn’t magically cause boilers to fail.

Rather, October often reveals problems that were already present.

A boiler that has a deteriorating component, dirty burner, unreliable control, leaking valve, compromised tube, or other developing problem may continue operating during periods of lighter demand.

When demand increases, however, the weakness can become obvious.

This is one reason preventive maintenance is so important.

A facility manager doesn’t want the first serious test of a boiler after months of reduced operation to occur when the building absolutely needs it.

The better approach is to identify potential problems before seasonal demand increases.

Why Summer Is Often the Ideal Maintenance Period

Although October is traditionally associated with boiler maintenance, the smartest time to perform many major maintenance tasks is actually before October.

Summer can provide an excellent opportunity for planned shutdowns.

Depending on the facility, technicians can inspect equipment, perform repairs, replace worn components, clean surfaces, test controls, inspect burners, and address other issues without disrupting peak-season operations.

This is one reason commercial boiler maintenance should be viewed as a year-round responsibility rather than something that happens once every October.

October is the deadline on the calendar.

The preparation should have started earlier.

What Happens During Boiler Maintenance?

Industrial boiler maintenance isn’t simply a matter of looking at the boiler and deciding whether it appears happy.

A proper maintenance program can involve numerous components and systems.

McKenna Boiler Works notes that its maintenance services include annual inspections and preventative maintenance, as well as quarterly tune-ups intended to verify proper operation, code compliance, and potential areas of concern.

Depending on the equipment and facility, maintenance may include inspection of:

• Burners
• Combustion systems
• Controls
• Safety devices
• Valves
• Pressure components
• Tubes
• Pumps
• Feedwater systems
• Blowdown systems
• Electrical components
• Instrumentation
• Piping
• Fuel systems
• Water treatment systems

The precise maintenance requirements depend on the boiler, its application, operating conditions, manufacturer requirements, and applicable regulations.

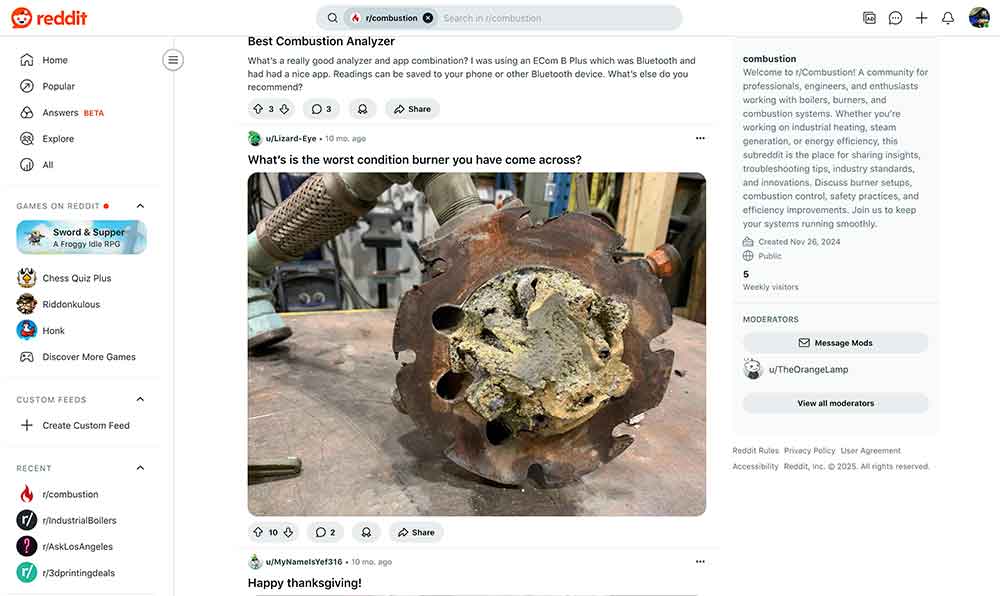

Burner Inspection and Combustion

The burner is one of the most important components of many industrial boilers.

A burner that isn’t operating correctly can affect efficiency, reliability, emissions, and safety.

Combustion tuning and inspection can help identify problems before they become more serious.

A maintenance technician may examine burner operation, ignition, flame characteristics, controls, fuel delivery, and combustion performance.

For facilities operating in Southern California, emissions are another consideration. McKenna Boiler Works offers Low NOx burner retrofit services designed to reduce emissions and improve performance.

That makes fall maintenance an opportunity not merely to repair existing problems but potentially to evaluate whether an older boiler system could benefit from an efficiency or emissions upgrade.

Inspecting Boiler Tubes

Boiler tubes are another critical area.

Depending on the boiler design, tubes transfer heat and play an essential role in generating steam or heating water.

Tube problems can result in leaks, reduced efficiency, operational problems, and potentially significant downtime.

Finding a developing tube issue during a planned maintenance period is vastly preferable to discovering it during an emergency.

Once a boiler is down unexpectedly, the facility manager isn’t thinking about whether Tuesday afternoon would be convenient for a repair.

They’re thinking:

How quickly can we get this thing running?

That’s a very different conversation.

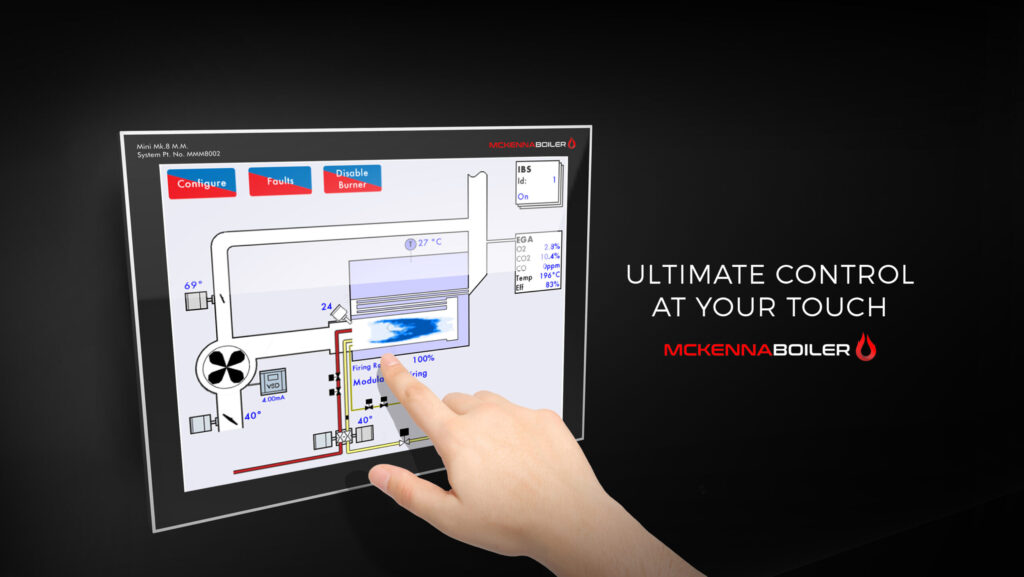

Controls and Safety Systems

Modern industrial boilers rely on sophisticated control and safety systems.

These systems monitor and regulate important operating parameters and can shut equipment down when unsafe conditions occur.

During maintenance, technicians can inspect controls, sensors, switches, safety devices, wiring, and related components.

A problem with a control system may not necessarily look dramatic.

There may be no spectacular leak, giant cloud of smoke, or movie-style explosion.

Sometimes the boiler simply refuses to start.

And that is precisely when everyone suddenly becomes extremely interested in the control panel.

Preventive maintenance can help identify these issues before they become an emergency.

Valves and Other Components

Industrial boilers contain numerous valves and other components that must operate correctly.

Depending on the system, these may include safety valves, blowdown valves, feedwater valves, steam valves, isolation valves, and other specialized equipment.

Wear and corrosion can affect components over time.

Replacing a component during scheduled maintenance is generally much easier than replacing it in the middle of an unexpected shutdown.

This is one of the major advantages of planned maintenance: you control the timing.

Emergency repairs control the timing for you.

And emergency repairs have a particularly annoying habit of choosing Friday afternoon.

The Importance of OEM Parts

Another major consideration during fall maintenance is the availability of replacement parts.

Industrial boilers are not appliances where you simply run to a local home improvement store and grab whatever looks approximately correct.

These are specialized pressure vessels and combustion systems.

Using properly specified replacement components is important for safety, performance, reliability, and compatibility.

McKenna Boiler Works emphasizes the use of OEM boiler parts for repairs and maintains parts for numerous manufacturers. The company states that it carries more than $2 million in boiler parts inventory and services boilers from many major brands.

That broad inventory can be particularly valuable when a facility discovers a problem during fall maintenance.

The difference between having the correct part available and waiting for a part to be manufactured or shipped can translate directly into downtime.

Why Multi-Brand Experience Matters

Many facilities don’t operate boilers manufactured by the same company that services them.

That’s not unusual.

A facility might have an older Cleaver-Brooks boiler alongside equipment from another manufacturer. Another facility might have a Parker, Johnston, Aerco, Raypak, Laars, Lochinvar, Hurst, Lattner, Ajax, or other system.

McKenna Boiler Works specifically states that its technicians can service boilers manufactured by McKenna as well as equipment from other vendors. Its Los Angeles service information lists numerous major boiler brands it services.

For facility managers, that means there is less need to maintain a separate relationship with a different service company for every piece of equipment.

And that’s where the idea of a one-stop boiler shop becomes particularly valuable.

McKenna Boiler Works: A One-Stop Shop

For businesses in Los Angeles and throughout Southern California, McKenna Boiler Works offers a combination of capabilities that can simplify boiler management.

The company manufactures commercial and industrial boilers, but manufacturing is only one part of the business.

McKenna also provides boiler repair, preventative maintenance, installation, rentals, engineering services, and boiler parts.

That means a facility manager doesn’t necessarily have to call one company for a new boiler, another for emergency repair, another for routine maintenance, and another for parts.

McKenna can potentially handle all of those needs.

The company has been operating since 1921, giving it more than a century of experience in boiler manufacturing and service. Its Los Angeles location is at 1510 N. Spring Street.

Emergency Repair Is Still Important

Even the best maintenance program cannot prevent every failure.

Industrial equipment occasionally breaks.

Components wear out.

Controls fail.

Tubes leak.

Burners develop problems.

And sometimes a boiler simply decides that today would be a good day to ruin everyone’s schedule.

That’s where emergency service becomes critical.

McKenna Boiler Works specifically advertises 24/7 emergency boiler repair and states that its technicians service industrial and commercial boilers regardless of manufacturer.

That matters because a boiler failure can have consequences far beyond the boiler room.

A manufacturing operation may lose production.

A hospital may experience disruption to essential steam services.

A hotel may have problems with heating or hot water.

A food-processing operation may be unable to maintain necessary process conditions.

The financial impact of downtime can quickly dwarf the cost of a repair.

Fall Maintenance Is About Reliability

The ultimate goal of fall maintenance isn’t simply to make a boiler look clean.

It’s reliability.

Facility managers want to know that when the system is called upon, it will operate.

That means identifying problems before they become failures.

It means maintaining burners.

It means checking controls.

It means inspecting safety systems.

It means replacing worn components.

It means keeping appropriate parts available.

It means addressing efficiency issues.

And it means documenting maintenance so facility personnel know what has been done and what may need attention later.

Maintenance Can Also Improve Efficiency

Maintenance isn’t solely about preventing breakdowns.

A properly maintained boiler can operate more efficiently than a neglected system.

Combustion problems, fouling, poorly adjusted burners, leaking valves, defective controls, and other issues can affect system performance.

Even relatively small efficiency losses can become significant when equipment operates for thousands of hours.

For a large industrial facility, fuel consumption represents a substantial operating expense.

That means maintenance should be viewed as part of an overall energy-management strategy.

Don’t Wait Until the First Cold Day

Perhaps the biggest lesson is simple:

Don’t wait for October to think about your boiler.

October should ideally be the month when your boiler is already prepared for increased demand.

If the system hasn’t been inspected, serviced, or evaluated, however, October is still better than November, December, or the middle of a production emergency.

Facility managers should review their maintenance schedules before seasonal demand increases and determine whether boilers, burners, controls, safety systems, and associated equipment need inspection or service.

If problems are discovered, addressing them while there is still some scheduling flexibility is almost always preferable to waiting until the equipment fails at the worst possible moment.

The Value of Having One Company Handle the Boiler

There’s a practical advantage to working with a company capable of handling multiple aspects of boiler ownership.

McKenna Boiler Works can manufacture commercial and industrial boilers, provide routine and preventative maintenance, perform emergency repairs, supply OEM parts, install equipment, and provide temporary boiler rentals.

That breadth is particularly useful during fall.

A technician performing maintenance might identify a component that needs replacement.

If the part is available through the same company, the repair process can be simplified.

If the boiler needs a larger repair, the same organization can provide service.

If a facility experiences an unexpected failure, emergency repair is available.

And if the existing boiler has reached the end of its useful life, the company also manufactures replacement equipment.

It’s a complete lifecycle approach to boiler service.

What Facility Managers Should Do This Fall

A practical fall boiler checklist might include:

1. Review maintenance records.
2. Schedule required inspections.
3. Inspect burners and combustion systems.
4. Check controls and safety devices.
5. Inspect tubes and pressure components as appropriate.
6. Check valves and piping.
7. Evaluate feedwater and blowdown systems.
8. Review water treatment.
9. Identify worn or obsolete components.
10. Verify availability of critical replacement parts.
11. Address known problems before peak demand.
12. Confirm emergency service contacts.

This doesn’t replace the manufacturer’s maintenance requirements or the work of qualified boiler professionals.

Instead, it provides facility managers with a useful framework for discussing maintenance needs with their boiler service provider.

Conclusion

October has traditionally become an important month for commercial and industrial boiler repair and maintenance because it marks the transition into a period of increased heating and operational demand. The real objective, however, isn’t to wait until October and then scramble to repair a neglected boiler. The objective is to use the summer and early fall to inspect, maintain, repair, and prepare the system before seasonal demand places additional stress on the equipment.

For Los Angeles businesses that depend on reliable boiler operation, having a qualified service partner can make that process much easier. McKenna Boiler Works offers a particularly comprehensive approach, manufacturing commercial and industrial boilers while also providing preventative maintenance, emergency repair, boiler rentals, installation, and OEM parts for many major boiler brands.

The company’s Los Angeles operation has been serving the boiler industry for more than a century, and its broad parts inventory and multi-brand service capabilities give facility managers another reason to plan maintenance before a problem becomes an emergency.

The best boiler emergency is the one that never happens.

And if your boiler could speak, it would probably agree. It would much rather have a technician inspect it on a convenient Tuesday morning in September than have everyone discover its problems at 2:00 a.m. on the coldest night of the year.

That is why fall boiler maintenance isn’t simply another item on a facility manager’s checklist. It’s an investment in uptime, reliability, efficiency, and peace of mindFor many industrial and commercial facilities, October has a way of exposing problems that were quietly developing all summer. A boiler may have sat relatively idle during warmer months, receiving little attention while everyone concentrated on production, budgets, construction projects, and the other thousand things that occupy a facility manager’s day. Then fall arrives, temperatures begin to drop, heating and steam demand increases, and suddenly that boiler is expected to perform flawlessly. That is one reason fall—and October in particular—has traditionally been such an important time for industrial and commercial boiler repair, inspection, and maintenance. The goal isn’t necessarily to wait until October to begin maintenance. Ideally, much of the work is completed during the summer shutdown. But October is when facilities often discover whether that preparation was adequate. In other words, October is a little like the final exam for your boiler. Unfortunately, boilers don’t get extra credit for showing up.

Why Fall Is Boiler Season

Commercial and industrial boilers can serve many purposes. Depending on the facility and system, they may provide steam or heat for manufacturing processes, sterilization, food processing, laundry, building heating, kitchens, or other essential operations.

When warm weather arrives, some facilities experience reduced demand for heating. That creates an opportunity to inspect, clean, repair, tune, and upgrade equipment while the boiler system isn’t under maximum seasonal demand.

Then autumn arrives.

The system starts working harder.

Buildings need more heat. Process requirements may change. Steam loads can increase. Equipment that seemed perfectly adequate during summer suddenly has to operate for longer periods and at higher loads.

A boiler problem that might have been a minor inconvenience in July can become a major operational problem in October.

That is why the transition into fall is such an important maintenance window.

October Doesn’t Necessarily Cause Boiler Problems

It is worth making an important distinction: October itself doesn’t magically cause boilers to fail.

Rather, October often reveals problems that were already present.

A boiler that has a deteriorating component, dirty burner, unreliable control, leaking valve, compromised tube, or other developing problem may continue operating during periods of lighter demand.

When demand increases, however, the weakness can become obvious.

This is one reason preventive maintenance is so important.

A facility manager doesn’t want the first serious test of a boiler after months of reduced operation to occur when the building absolutely needs it.

The better approach is to identify potential problems before seasonal demand increases.

Why Summer Is Often the Ideal Maintenance Period

Although October is traditionally associated with boiler maintenance, the smartest time to perform many major maintenance tasks is actually before October.

Summer can provide an excellent opportunity for planned shutdowns.

Depending on the facility, technicians can inspect equipment, perform repairs, replace worn components, clean surfaces, test controls, inspect burners, and address other issues without disrupting peak-season operations.

This is one reason commercial boiler maintenance should be viewed as a year-round responsibility rather than something that happens once every October.

October is the deadline on the calendar.

The preparation should have started earlier.

What Happens During Boiler Maintenance?

Industrial boiler maintenance isn’t simply a matter of looking at the boiler and deciding whether it appears happy.

A proper maintenance program can involve numerous components and systems.

McKenna Boiler Works notes that its maintenance services include annual inspections and preventative maintenance, as well as quarterly tune-ups intended to verify proper operation, code compliance, and potential areas of concern.

Depending on the equipment and facility, maintenance may include inspection of:

• Burners
• Combustion systems
• Controls
• Safety devices
• Valves
• Pressure components
• Tubes
• Pumps
• Feedwater systems
• Blowdown systems
• Electrical components
• Instrumentation
• Piping
• Fuel systems
• Water treatment systems

The precise maintenance requirements depend on the boiler, its application, operating conditions, manufacturer requirements, and applicable regulations.

Burner Inspection and Combustion

The burner is one of the most important components of many industrial boilers.

A burner that isn’t operating correctly can affect efficiency, reliability, emissions, and safety.

Combustion tuning and inspection can help identify problems before they become more serious.

A maintenance technician may examine burner operation, ignition, flame characteristics, controls, fuel delivery, and combustion performance.

For facilities operating in Southern California, emissions are another consideration. McKenna Boiler Works offers Low NOx burner retrofit services designed to reduce emissions and improve performance.

That makes fall maintenance an opportunity not merely to repair existing problems but potentially to evaluate whether an older boiler system could benefit from an efficiency or emissions upgrade.

Inspecting Boiler Tubes

Boiler tubes are another critical area.

Depending on the boiler design, tubes transfer heat and play an essential role in generating steam or heating water.

Tube problems can result in leaks, reduced efficiency, operational problems, and potentially significant downtime.

Finding a developing tube issue during a planned maintenance period is vastly preferable to discovering it during an emergency.

Once a boiler is down unexpectedly, the facility manager isn’t thinking about whether Tuesday afternoon would be convenient for a repair.

They’re thinking:

How quickly can we get this thing running?

That’s a very different conversation.

Controls and Safety Systems

Modern industrial boilers rely on sophisticated control and safety systems.

These systems monitor and regulate important operating parameters and can shut equipment down when unsafe conditions occur.

During maintenance, technicians can inspect controls, sensors, switches, safety devices, wiring, and related components.

A problem with a control system may not necessarily look dramatic.

There may be no spectacular leak, giant cloud of smoke, or movie-style explosion.

Sometimes the boiler simply refuses to start.

And that is precisely when everyone suddenly becomes extremely interested in the control panel.

Preventive maintenance can help identify these issues before they become an emergency.

Valves and Other Components

Industrial boilers contain numerous valves and other components that must operate correctly.

Depending on the system, these may include safety valves, blowdown valves, feedwater valves, steam valves, isolation valves, and other specialized equipment.

Wear and corrosion can affect components over time.

Replacing a component during scheduled maintenance is generally much easier than replacing it in the middle of an unexpected shutdown.

This is one of the major advantages of planned maintenance: you control the timing.

Emergency repairs control the timing for you.

And emergency repairs have a particularly annoying habit of choosing Friday afternoon.

The Importance of OEM Parts

Another major consideration during fall maintenance is the availability of replacement parts.

Industrial boilers are not appliances where you simply run to a local home improvement store and grab whatever looks approximately correct.

These are specialized pressure vessels and combustion systems.

Using properly specified replacement components is important for safety, performance, reliability, and compatibility.

McKenna Boiler Works emphasizes the use of OEM boiler parts for repairs and maintains parts for numerous manufacturers. The company states that it carries more than $2 million in boiler parts inventory and services boilers from many major brands.

That broad inventory can be particularly valuable when a facility discovers a problem during fall maintenance.

The difference between having the correct part available and waiting for a part to be manufactured or shipped can translate directly into downtime.

Why Multi-Brand Experience Matters

Many facilities don’t operate boilers manufactured by the same company that services them.

That’s not unusual.

A facility might have an older Cleaver-Brooks boiler alongside equipment from another manufacturer. Another facility might have a Parker, Johnston, Aerco, Raypak, Laars, Lochinvar, Hurst, Lattner, Ajax, or other system.

McKenna Boiler Works specifically states that its technicians can service boilers manufactured by McKenna as well as equipment from other vendors. Its Los Angeles service information lists numerous major boiler brands it services.

For facility managers, that means there is less need to maintain a separate relationship with a different service company for every piece of equipment.

And that’s where the idea of a one-stop boiler shop becomes particularly valuable.

McKenna Boiler Works: A One-Stop Shop

For businesses in Los Angeles and throughout Southern California, McKenna Boiler Works offers a combination of capabilities that can simplify boiler management.

The company manufactures commercial and industrial boilers, but manufacturing is only one part of the business.

McKenna also provides boiler repair, preventative maintenance, installation, rentals, engineering services, and boiler parts.

That means a facility manager doesn’t necessarily have to call one company for a new boiler, another for emergency repair, another for routine maintenance, and another for parts.

McKenna can potentially handle all of those needs.

The company has been operating since 1921, giving it more than a century of experience in boiler manufacturing and service. Its Los Angeles location is at 1510 N. Spring Street.

Emergency Repair Is Still Important

Even the best maintenance program cannot prevent every failure.

Industrial equipment occasionally breaks.

Components wear out.

Controls fail.

Tubes leak.

Burners develop problems.

And sometimes a boiler simply decides that today would be a good day to ruin everyone’s schedule.

That’s where emergency service becomes critical.

McKenna Boiler Works specifically advertises 24/7 emergency boiler repair and states that its technicians service industrial and commercial boilers regardless of manufacturer.

That matters because a boiler failure can have consequences far beyond the boiler room.

A manufacturing operation may lose production.

A hospital may experience disruption to essential steam services.

A hotel may have problems with heating or hot water.

A food-processing operation may be unable to maintain necessary process conditions.

The financial impact of downtime can quickly dwarf the cost of a repair.

Fall Maintenance Is About Reliability

The ultimate goal of fall maintenance isn’t simply to make a boiler look clean.

It’s reliability.

Facility managers want to know that when the system is called upon, it will operate.

That means identifying problems before they become failures.

It means maintaining burners.

It means checking controls.

It means inspecting safety systems.

It means replacing worn components.

It means keeping appropriate parts available.

It means addressing efficiency issues.

And it means documenting maintenance so facility personnel know what has been done and what may need attention later.

Maintenance Can Also Improve Efficiency

Maintenance isn’t solely about preventing breakdowns.

A properly maintained boiler can operate more efficiently than a neglected system.

Combustion problems, fouling, poorly adjusted burners, leaking valves, defective controls, and other issues can affect system performance.

Even relatively small efficiency losses can become significant when equipment operates for thousands of hours.

For a large industrial facility, fuel consumption represents a substantial operating expense.

That means maintenance should be viewed as part of an overall energy-management strategy.

Don’t Wait Until the First Cold Day

Perhaps the biggest lesson is simple:

Don’t wait for October to think about your boiler.

October should ideally be the month when your boiler is already prepared for increased demand.

If the system hasn’t been inspected, serviced, or evaluated, however, October is still better than November, December, or the middle of a production emergency.

Facility managers should review their maintenance schedules before seasonal demand increases and determine whether boilers, burners, controls, safety systems, and associated equipment need inspection or service.

If problems are discovered, addressing them while there is still some scheduling flexibility is almost always preferable to waiting until the equipment fails at the worst possible moment.

The Value of Having One Company Handle the Boiler

There’s a practical advantage to working with a company capable of handling multiple aspects of boiler ownership.

McKenna Boiler Works can manufacture commercial and industrial boilers, provide routine and preventative maintenance, perform emergency repairs, supply OEM parts, install equipment, and provide temporary boiler rentals.

That breadth is particularly useful during fall.

A technician performing maintenance might identify a component that needs replacement.

If the part is available through the same company, the repair process can be simplified.

If the boiler needs a larger repair, the same organization can provide service.

If a facility experiences an unexpected failure, emergency repair is available.

And if the existing boiler has reached the end of its useful life, the company also manufactures replacement equipment.

It’s a complete lifecycle approach to boiler service.

What Facility Managers Should Do This Fall

A practical fall boiler checklist might include:

1. Review maintenance records.
2. Schedule required inspections.
3. Inspect burners and combustion systems.
4. Check controls and safety devices.
5. Inspect tubes and pressure components as appropriate.
6. Check valves and piping.
7. Evaluate feedwater and blowdown systems.
8. Review water treatment.
9. Identify worn or obsolete components.
10. Verify availability of critical replacement parts.
11. Address known problems before peak demand.
12. Confirm emergency service contacts.

This doesn’t replace the manufacturer’s maintenance requirements or the work of qualified boiler professionals.

Instead, it provides facility managers with a useful framework for discussing maintenance needs with their boiler service provider.

Conclusion

October has traditionally become an important month for commercial and industrial boiler repair and maintenance because it marks the transition into a period of increased heating and operational demand. The real objective, however, isn’t to wait until October and then scramble to repair a neglected boiler. The objective is to use the summer and early fall to inspect, maintain, repair, and prepare the system before seasonal demand places additional stress on the equipment.

For Los Angeles businesses that depend on reliable boiler operation, having a qualified service partner can make that process much easier. McKenna Boiler Works offers a particularly comprehensive approach, manufacturing commercial and industrial boilers while also providing preventative maintenance, emergency repair, boiler rentals, installation, and OEM parts for many major boiler brands.

The company’s Los Angeles operation has been serving the boiler industry for more than a century, and its broad parts inventory and multi-brand service capabilities give facility managers another reason to plan maintenance before a problem becomes an emergency.

The best boiler emergency is the one that never happens.

And if your boiler could speak, it would probably agree. It would much rather have a technician inspect it on a convenient Tuesday morning in September than have everyone discover its problems at 2:00 a.m. on the coldest night of the year.

That is why fall boiler maintenance isn’t simply another item on a facility manager’s checklist. It’s an investment in uptime, reliability, efficiency, and peace of mind.

mckennaboiler.com

The post October Boiler Maintenance: Why Fall Is the Right Time to Service Your Industrial Boiler appeared first on McKenna Boiler.

Today, McKenna Boiler Works has grown into one of Southern California’s leading providers of industrial and commercial boilers, boiler repair, rental boilers, OEM replacement parts, and field service. Its century-long history reflects not only the evolution of boiler technology but also the resilience, adaptability, and customer commitment that have allowed it to thrive through economic booms, wars, recessions, technological revolutions, and changing environmental standards.

The 1920s: Born During America’s Industrial Expansion

The 1920s, often called the “Roaring Twenties,” were years of remarkable industrial growth. Although automobiles were becoming increasingly common, steam locomotives still dominated America’s railroads. Thousands of factories, power plants, food processors, hospitals, breweries, textile mills, and manufacturing facilities depended on industrial steam boilers every day.

Steam represented the backbone of American industry.

Factories required dependable boilers to:

• Generate process steam
• Heat manufacturing facilities
• Sterilize equipment
• Produce electricity
• Power industrial machinery

McKenna Boiler Works entered the marketplace during this exciting era, providing expertise in an industry that was absolutely essential to American manufacturing.

While many industries were embracing electrification, steam remained irreplaceable for countless industrial processes. That demand created opportunities for companies capable of designing, servicing, and maintaining reliable boiler systems.

The 1930s: Persevering Through the Great Depression

Only a few years after McKenna Boiler Works was founded, the nation entered one of its greatest economic challenges: the Great Depression.

Construction slowed dramatically, unemployment soared, and many businesses closed their doors.

Yet essential industries continued operating.

Hospitals still needed steam.

Food processors still required boilers.

Factories producing essential goods remained in operation.

Companies like McKenna Boiler Works survived by providing maintenance and repair services that allowed customers to extend the life of existing equipment rather than purchase new systems.

The ability to repair, refurbish, and maintain industrial boilers became even more valuable during difficult economic times.

The 1940s: Supporting Wartime Production

World War II transformed American manufacturing.

Factories across the country shifted toward producing:

• Aircraft
• Ships
• Vehicles
• Ammunition
• Military equipment
• Food supplies

Steam boilers became even more important.

Industrial plants often operated around the clock to meet wartime production demands.

Boilers generated steam for manufacturing processes, sterilization, heating, and power generation.

Companies with expertise in boiler maintenance played an important supporting role by helping keep factories operating reliably throughout the war effort.

The 1940s also accelerated advances in welding, metallurgy, fabrication, and industrial engineering—developments that would continue benefiting boiler manufacturers for decades.

The 1950s: America’s Manufacturing Boom

Following World War II, America entered an unprecedented period of prosperity.

New factories appeared across the country.

Suburban growth fueled demand for construction materials.

Hospitals expanded.

Universities grew.

Hotels welcomed increasing numbers of travelers.

Nearly every major institution depended upon dependable steam generation.

Boiler technology continued improving through:

• Better controls
• Improved combustion
• Enhanced safety devices
• Higher operating efficiencies

McKenna Boiler Works evolved alongside these advancements while continuing to build relationships with industrial customers throughout Southern California.

The 1960s: Growth and Modernization

The 1960s brought rapid technological progress.

America witnessed:

• The Space Race
• Interstate highway expansion
• Computer technology emerging
• Major infrastructure projects

Industrial facilities also modernized.

Manufacturers increasingly demanded boilers that offered:

• Greater reliability
• Improved efficiency
• Reduced maintenance
• Better automation

Companies that embraced innovation while maintaining traditional craftsmanship were well positioned for long-term success.

McKenna Boiler Works continued adapting to changing customer needs while building upon decades of experience.

The 1970s: Energy Awareness Changes Everything

The energy crises of the 1970s fundamentally changed how industries viewed fuel consumption.

Businesses became increasingly interested in:

• Fuel efficiency
• Heat recovery
• Reduced operating costs
• Better combustion control

Boiler manufacturers responded by developing more efficient systems capable of producing the same steam output while consuming less fuel.

Customers increasingly recognized that investing in efficient boiler systems could generate significant long-term savings.

This decade marked the beginning of efficiency becoming a major selling point within the boiler industry.

The 1980s: Automation Enters the Boiler Room

By the 1980s, computer technology was becoming more common throughout industry.

Boiler systems incorporated increasingly sophisticated controls.

Automation improved:

• Safety
• Reliability
• Fuel management
• Operating efficiency
• Diagnostic capabilities

Plant operators gained greater visibility into boiler performance than ever before.

McKenna Boiler Works remained committed to helping customers understand and maintain these evolving systems while continuing to provide expert repairs and replacement parts.

The 1990s: Environmental Regulations Increase

The 1990s saw growing attention toward environmental responsibility.

Air quality regulations became increasingly important, particularly in California.

Boiler manufacturers focused on:

• Lower emissions
• Cleaner combustion
• Improved burner technology
• Better efficiency

Southern California became one of the nation’s leaders in adopting cleaner industrial equipment.

Companies like McKenna Boiler Works helped customers upgrade older systems while maintaining compliance with changing regulations.

The 2000s: The Internet Changes Customer Expectations

The new millennium transformed nearly every industry.

Customers increasingly expected:

• Faster communication
• Rapid service response
• Better documentation
• Online technical resources

Industrial downtime became even more expensive.

A manufacturing plant losing steam production could experience enormous financial losses in only a few hours.

Quick response times became increasingly valuable.

McKenna Boiler Works strengthened its reputation by providing emergency service, technical expertise, and dependable customer support.

The 2010s: Reliability Becomes Even More Critical

Modern manufacturing increasingly adopted lean production methods.

Many facilities reduced excess inventory while relying upon continuous production.

As a result, boiler reliability became absolutely essential.

Unexpected downtime could interrupt:

• Food production
• Pharmaceutical manufacturing
• Hospital operations
• Hospitality services
• Industrial processing

Preventive maintenance gained greater importance than ever before.

Customers increasingly recognized that routine boiler inspections and OEM replacement parts helped avoid catastrophic failures.

McKenna Boiler Works continued emphasizing proactive maintenance and genuine OEM components to maximize equipment safety and longevity.

The 2020s: A Century of Experience

Today, McKenna Boiler Works has reached an extraordinary milestone—more than 100 years in business.

Very few industrial companies remain independently successful after an entire century.

Reaching this milestone reflects several important qualities:

• Technical expertise
• Financial stability
• Adaptability
• Customer loyalty
• Commitment to quality
• Experienced personnel

Today’s boiler systems are dramatically different from those installed during the 1920s, yet the company’s mission remains remarkably similar: helping customers maintain dependable steam generation.

Modern offerings now include:

• Industrial boiler manufacturing
• Commercial boiler systems
• Rental boilers
• Emergency boiler repair
• Preventive maintenance
• OEM replacement parts
• Burner service
• Combustion analysis
• Low-NOx boiler solutions

These services support hospitals, manufacturers, hotels, apartment buildings, food processors, educational institutions, and countless other facilities throughout Southern California and beyond.

A Century of Changing Technology

When McKenna Boiler Works opened its doors:

• Steam locomotives dominated rail transportation.
• Vacuum tubes powered radios.
• Air conditioning was uncommon.
• Computers did not exist.
• Jet aircraft had not yet been invented.
• The interstate highway system had not been built.

Today, customers benefit from:

• Digital combustion controls
• Remote monitoring
• High-efficiency burners
• Low-emission technologies
• Advanced safety systems
• Sophisticated diagnostics

Throughout all these changes, one constant has remained: industries still depend upon reliable steam.

Experience Cannot Be Manufactured Overnight

Perhaps the greatest advantage McKenna Boiler Works possesses is something that cannot simply be purchased or copied—experience.

Every decade has presented new challenges:

• Economic downturns
• Fuel shortages
• Environmental regulations
• Technological advances
• Changing customer expectations

Successfully navigating each period has required continual learning and adaptation.

Every completed installation, every repaired boiler, and every satisfied customer has added to the company’s institutional knowledge.

Why Longevity Matters

Many businesses advertise experience.

Few can honestly say they have served customers continuously for over a century.

Longevity demonstrates that a company has earned the confidence of multiple generations of customers.

It suggests:

• Consistent workmanship
• Sound business practices
• Strong customer relationships
• Financial responsibility
• Technical excellence

Companies do not remain successful for 100 years by accident.

Looking Toward the Next Century

As industries pursue greater efficiency and lower emissions, boilers will continue evolving.

Future developments may include:

• Greater automation
• Artificial intelligence
• Advanced predictive maintenance
• Alternative fuels
• Enhanced remote diagnostics
• Improved energy recovery

McKenna Boiler Works is well positioned to help customers navigate these changes while continuing the tradition established nearly a century ago.

Conclusion: A Century That Inspires Confidence

When customers choose an industrial boiler company, they are making an important decision. Boilers are among the most critical—and expensive—pieces of equipment in many facilities, and reliability, safety, and expertise matter. McKenna Boiler Works’ more than 100-year history speaks volumes about its commitment to quality and customer service. Since its founding in the 1920s, the company has successfully adapted to changing technologies, evolving regulations, economic challenges, and the ever-changing needs of industry. Few businesses can say they have served customers through the Great Depression, World War II, the manufacturing boom, the computer age, and into the modern era. That remarkable continuity provides customers with confidence that they are working with a company built on experience, technical knowledge, and long-term relationships. When businesses partner with McKenna Boiler Works, they are not simply hiring a boiler company—they are working with an organization whose century of proven performance has earned the trust of generations of industrial customers.

mckennaboiler.com

The post McKenna Boiler Works: A Century of Steam, Innovation, and Trust from the 1920s to Today appeared first on McKenna Boiler.

Choosing the correct boiler is one of the most important decisions a facility manager, engineer, or plant operator can make. An improperly selected boiler can increase operating costs, reduce efficiency, create maintenance headaches, and even shorten the life of an entire heating system. Conversely, selecting the right boiler for a specific application can improve reliability, reduce emissions, lower fuel consumption, and provide decades of dependable service.

This article compares the major types of industrial boilers, examining their design, advantages, disadvantages, and the applications where each performs best.

Firetube Boilers

The firetube boiler is one of the oldest and most widely used industrial boiler designs.

In a firetube boiler, hot combustion gases travel through a series of tubes that pass through a large vessel filled with water. As the hot gases move through the tubes, heat transfers into the surrounding water, producing steam or hot water.

Because the entire pressure vessel contains water, firetube boilers typically have a large water volume. This allows them to respond well to varying heating loads while providing relatively stable operation.

Advantages of Firetube Boilers

Firetube boilers remain popular because they offer several practical benefits:

• Lower initial purchase cost than many comparable watertube designs
• Simple construction that makes operation straightforward
• Easier maintenance and inspection
• Lower installation costs
• Excellent reliability
• Long operating life with proper maintenance
• Suitable for both steam and hot water applications

For many commercial buildings and light industrial facilities, firetube boilers provide an excellent balance of performance and affordability.

Disadvantages

Despite their popularity, firetube boilers have limitations.

Because they contain a relatively large volume of water, they generally:

• Require more time to produce steam from a cold start
• Respond more slowly to rapid load changes
• Have practical pressure limitations
• Produce lower steam capacities than large watertube units

These characteristics make them less suitable for extremely large industrial operations with highly variable steam demands.

Typical Applications

Firetube boilers are commonly found in:

• Hospitals
• Hotels
• Schools
• Apartment complexes
• Food processing facilities
• Breweries
• Small manufacturing plants
• Commercial laundries

They are especially attractive where reliability and simplicity are more important than extremely high steam production.

Watertube Boilers

Watertube boilers reverse the arrangement found in firetube boilers.

Instead of combustion gases traveling through tubes surrounded by water, water flows through tubes that are surrounded by hot combustion gases.

Although this may seem like a simple design change, it dramatically affects boiler performance.

Watertube boilers can safely operate at much higher pressures and produce significantly greater steam volumes than firetube boilers.

For this reason, they dominate heavy industrial applications.

Advantages

Watertube boilers offer numerous benefits:

• Very high steam generation capacity
• High operating pressures
• Faster startup times
• Rapid response to changing steam demands
• Excellent thermal efficiency
• Reduced risk associated with lower water volume
• Ability to support continuous industrial processes

Facilities with demanding steam requirements often have little alternative to watertube technology.

Disadvantages

Watertube boilers also present challenges.

They generally:

• Cost more initially
• Require more sophisticated controls
• Demand higher water quality
• Need experienced operators
• Have more complex maintenance procedures

Scale buildup inside water tubes can reduce efficiency and create overheating conditions, making water treatment extremely important.

Typical Applications

Watertube boilers are frequently installed in:

• Refineries
• Chemical plants
• Paper mills
• Power plants
• Petrochemical facilities
• Large food manufacturers
• Pharmaceutical production
• Heavy manufacturing

These industries require dependable steam generation around the clock.

Electric Boilers

Electric boilers eliminate combustion entirely.

Instead of burning fuel, they use electric heating elements or electrodes to generate heat directly.

Because no flame exists, electric boilers produce no combustion emissions at the point of use.

Advantages

Electric boilers provide several unique benefits:

• Extremely quiet operation
• No fuel storage
• No combustion air requirements
• Compact size
• Very low routine maintenance
• High efficiency because nearly all electrical energy converts to heat
• Zero on-site emissions

Installation is often simpler because chimneys, stacks, and fuel piping are unnecessary.

Disadvantages

The largest disadvantage is operating cost.

Electricity is often substantially more expensive than natural gas for large heating loads.

Electric boilers may also be impractical where electrical service capacity is limited.

Large industrial electric boilers may require expensive utility upgrades before installation.

Typical Applications

Electric boilers work well for:

• Laboratories
• Hospitals
• Pharmaceutical manufacturing
• Clean rooms
• Universities
• Small industrial processes
• Facilities with renewable electrical power

Condensing Boilers

Condensing boilers represent one of the most significant efficiency improvements in modern boiler technology.

Traditional boilers allow water vapor created during combustion to escape through the exhaust stack.

Condensing boilers recover this heat by cooling exhaust gases enough to condense the water vapor.

This recovered heat increases overall efficiency substantially.

Advantages

Condensing boilers offer:

• Exceptional fuel efficiency
• Reduced fuel consumption
• Lower greenhouse gas emissions
• Reduced operating costs
• Excellent performance under low-temperature return water conditions

Many condensing boilers achieve thermal efficiencies exceeding 90%.

Disadvantages

They also require:

• Proper condensate drainage
• Corrosion-resistant heat exchangers
• Lower return water temperatures to maximize efficiency
• More sophisticated controls

Facilities with consistently high return-water temperatures may not realize the full efficiency benefits.

Typical Applications

Condensing boilers are common in:

• Schools
• Hospitals
• Office buildings
• Apartment buildings
• Hotels
• Commercial heating systems

They are particularly effective in hydronic heating systems.

Cast Iron Boilers

Although less common in large industrial settings, cast iron sectional boilers remain important in smaller commercial applications.

Rather than being manufactured as a single pressure vessel, these boilers consist of multiple cast iron sections assembled together.

Advantages

Their strengths include:

• Long service life
• Corrosion resistance
• Ability to replace damaged sections individually
• Excellent durability

Many cast iron boilers remain in service for several decades.

Disadvantages

However, cast iron can crack if subjected to thermal shock or improper water temperatures.

These boilers are also generally unsuitable for high-pressure steam applications.

Typical Applications

Common uses include:

• Churches
• Schools
• Historic buildings
• Municipal facilities
• Small commercial buildings

Modular Boiler Systems

Many facilities are replacing one large boiler with multiple smaller boilers operating together.

This approach is known as a modular boiler system.

Instead of relying upon a single large unit, several boilers share the heating load.

Advantages

Benefits include:

• Greater redundancy
• Improved efficiency during partial loads
• Easier maintenance scheduling
• Reduced downtime
• Better load matching
• Future expansion flexibility

If one boiler requires maintenance, the remaining units often continue serving the facility.

Disadvantages

The tradeoff is increased system complexity.

Multiple boilers require:

• Advanced sequencing controls
• Additional piping
• More pumps
• More valves
• Careful commissioning

Despite these challenges, modular systems have become increasingly popular because of their reliability and energy savings.

Fuel Considerations

Beyond boiler design, facilities must also choose the appropriate fuel.

Common options include:

• Natural gas
• Propane
• Fuel oil
• Dual-fuel systems
• Biomass
• Electricity

Natural gas remains the dominant industrial fuel because of its relatively low cost, widespread availability, and clean combustion characteristics.

Dual-fuel boilers offer additional resilience by allowing operators to switch fuels during supply interruptions or periods of peak pricing.

Fuel selection often depends on utility availability, environmental regulations, operating costs, and facility-specific requirements.

Choosing the Right Boiler

There is no universal “best” industrial boiler.

Instead, engineers evaluate several factors before making a selection, including:

• Required steam or hot water output
• Operating pressure
• Fuel availability
• Installation space
• Environmental regulations
• Maintenance capabilities
• Initial capital budget
• Long-term operating costs
• Redundancy requirements
• Future expansion plans

A hospital may prioritize reliability and redundancy, while a manufacturing plant may emphasize high-pressure steam production. A school district may focus on fuel efficiency and ease of maintenance, whereas a food processing facility may require rapid response to changing production schedules.

Conclusion

Industrial boilers are as diverse as the industries they serve. Firetube boilers offer simplicity, affordability, and dependable operation for many commercial and light industrial applications. Watertube boilers excel in high-pressure, high-capacity environments where rapid steam production is essential. Electric boilers provide clean, quiet operation for specialized facilities, while condensing boilers maximize fuel efficiency in modern heating systems. Cast iron boilers continue to serve smaller commercial buildings with remarkable longevity, and modular boiler systems provide flexibility and redundancy for facilities seeking maximum reliability.

Selecting the appropriate boiler requires balancing performance, efficiency, maintenance, safety, and long-term operating costs. The best choice is rarely determined by a single specification; instead, it results from carefully matching the boiler’s capabilities to the facility’s unique operational needs.

Regardless of the design selected, one principle remains constant: regular preventive maintenance is essential. Proper water treatment, routine inspections, burner tuning, and the use of genuine OEM replacement parts all contribute to maximizing efficiency, extending equipment life, and ensuring safe operation. A well-maintained industrial boiler can provide reliable service for decades, making it one of the most valuable long-term investments a facility can make.

mckennaboiler.com

The post Comparing and Contrasting the Different Types of Industrial Boilers appeared first on McKenna Boiler.

Industrial boilers are among the most important pieces of equipment in manufacturing plants, hospitals, food processing facilities, universities, refineries, apartment complexes, and commercial buildings. These systems generate steam or hot water that powers production equipment, provides heat, sterilizes tools, supports laundry operations, and performs countless other essential functions. Because industrial boilers operate under extreme temperatures and pressures, they are constantly exposed to harsh conditions that can lead to corrosion, scaling, cracking, erosion, and mechanical failure. Even a small amount of damage inside a boiler can reduce efficiency, increase fuel consumption, create dangerous operating conditions, and eventually lead to expensive downtime or catastrophic failure. Understanding the kinds of damage industrial boilers are prone to is critical for facility managers, engineers, and maintenance teams who want to maximize equipment life and avoid costly repairs.

One of the most common and destructive problems affecting industrial boilers is corrosion. Corrosion occurs when metal deteriorates because of chemical reactions involving water, oxygen, acids, or contaminants. Since boilers constantly contain water and steam, they are naturally vulnerable to various forms of internal and external corrosion. Oxygen corrosion is particularly common in boiler systems. Dissolved oxygen in boiler feedwater attacks steel surfaces and creates rust and pitting inside boiler tubes, drums, and piping. These pits may begin as tiny defects but can eventually penetrate completely through metal surfaces, causing leaks or tube failures. Oxygen corrosion is especially dangerous because it can occur rapidly if water treatment systems are not functioning correctly.

Another major issue is carbon dioxide corrosion. Carbon dioxide can dissolve into condensate and form carbonic acid, which attacks condensate return piping and other parts of the steam system. This type of corrosion is common in condensate lines where acidic water slowly eats away at the metal over time. Facilities often notice pinhole leaks, thinning pipe walls, or rust-colored condensate when carbon dioxide corrosion becomes severe. Proper chemical treatment and condensate management are essential to controlling this problem.

Acid corrosion is another serious concern in industrial boilers, especially in systems burning sulfur-containing fuels such as heavy oil or coal. During combustion, sulfur compounds can form sulfuric acid when combined with moisture. This acid attacks boiler tubes, economizers, stacks, and other metal surfaces. Low-temperature areas are especially vulnerable because acidic condensation tends to form there. Acid corrosion can rapidly destroy metal components if combustion systems are not adjusted properly or if flue gas temperatures are allowed to drop too low.

Caustic corrosion and caustic gouging are additional problems caused by improper water chemistry. These forms of damage occur when concentrated alkaline chemicals attack boiler metal surfaces, often beneath deposits or scale buildup. High temperatures and chemical concentration create localized corrosion that weakens steel and may lead to cracking or tube rupture. In severe cases, caustic gouging creates deep grooves in boiler tubes that significantly reduce structural integrity. Maintaining balanced boiler water chemistry is critical to preventing this type of damage.

Pitting corrosion is particularly dangerous because it creates highly localized damage that may go unnoticed until a leak or failure occurs. Instead of evenly thinning metal surfaces, pitting creates small but deep holes that penetrate into boiler tubes or pressure vessels. Pitting often develops beneath deposits, in stagnant water areas, or where oxygen concentration differences exist. Even a tiny pit can eventually grow deep enough to cause a catastrophic tube failure under high pressure conditions.

Scaling is another major threat to industrial boiler performance and reliability. Scale forms when dissolved minerals in water precipitate onto boiler surfaces during heating. Calcium, magnesium, silica, and other minerals create hard deposits inside boiler tubes and heat transfer surfaces. These deposits act as insulation, reducing heat transfer efficiency and forcing the boiler to consume more fuel to generate the same amount of steam. Even a relatively thin layer of scale can significantly increase fuel costs and operating temperatures.

Scale buildup also creates dangerous overheating conditions. Since scale prevents heat from transferring efficiently into the water, metal boiler tubes become excessively hot. Over time, this overheating weakens the metal and may cause bulging, cracking, or tube rupture. In severe cases, overheating can lead to catastrophic boiler failure. Water treatment systems such as softeners, reverse osmosis units, and chemical treatment programs are essential for controlling mineral deposits and scale formation.

Boiler tubes are particularly vulnerable to several forms of damage because they operate under constant thermal and mechanical stress. Thermal fatigue occurs when repeated heating and cooling cycles cause metal expansion and contraction. Over time, this stress weakens the metal and creates cracks. Boilers that frequently cycle on and off are especially susceptible to thermal fatigue damage. Cracks often develop around tube bends, welds, and attachment points where stress concentrations are highest.

Stress corrosion cracking is another serious problem affecting industrial boilers. This occurs when tensile stress and corrosive conditions combine to create cracks in metal surfaces. These cracks may be microscopic at first but can gradually grow under pressure and heat. Stainless steel components are particularly vulnerable to chloride stress corrosion cracking when exposed to chlorides in water or cleaning chemicals. Stress corrosion cracking can be difficult to detect because cracks may develop beneath insulation or inside pressure components.

Erosion is also common in high-velocity steam and water systems. Erosion occurs when fast-moving fluids or particles gradually wear away metal surfaces. Areas with turbulent flow, sharp elbows, valves, or restrictions are especially vulnerable. In some boilers, fly ash or particulate matter from combustion gases erodes tubes and heat transfer surfaces over time. Erosion thins metal walls and reduces component strength, eventually causing leaks or failures if left unaddressed.

Flow-accelerated corrosion is another form of damage found in boiler systems. This occurs when protective oxide layers on steel surfaces dissolve because of high-velocity water flow. Once the protective layer disappears, the underlying metal corrodes rapidly. Feedwater piping, economizers, and condensate systems are especially prone to this type of corrosion. Flow-accelerated corrosion has been responsible for several major industrial accidents and requires careful monitoring and water chemistry control.

External corrosion can also damage industrial boilers, particularly in humid or chemically aggressive environments. Boilers installed near coastal areas may experience accelerated corrosion because of salt-laden air. Industrial plants containing chemical vapors or high humidity can also create corrosive conditions around boiler exteriors. Corrosion beneath insulation is a particularly difficult problem because moisture becomes trapped against metal surfaces while remaining hidden from inspection. Over time, this concealed corrosion can significantly weaken pressure vessels and piping.

Soot and combustion deposits present additional challenges. Poor combustion adjustment may create soot buildup on fire-side surfaces, reducing heat transfer efficiency and increasing fuel consumption. Excessive soot accumulation can also create hot spots that damage boiler tubes. In fuel-burning boilers, ash deposits may combine with sulfur compounds to create corrosive slag deposits that attack metal surfaces at high temperatures.

Improper boiler operation often accelerates damage and corrosion problems. Rapid startup and shutdown procedures can create thermal shock that stresses metal components. Operating boilers above their designed pressure or temperature limits may also shorten equipment life. Low-water conditions are especially dangerous because they expose boiler tubes to direct flame temperatures without adequate cooling. This can rapidly overheat and weaken the metal, potentially causing explosions or catastrophic failures.

Poor maintenance practices are another major contributor to boiler damage. Boilers require regular inspection, cleaning, testing, and water treatment to operate safely and efficiently. Neglecting blowdown procedures allows dissolved solids and sludge to accumulate inside the boiler. Failing to inspect safety valves, controls, or low-water cutoffs can create hazardous operating conditions. Delayed repairs often allow minor issues to become major problems requiring expensive outages and component replacement.

Industrial boiler downtime can be extremely costly for facilities that rely on steam production. Hospitals depend on boilers for sterilization, heating, and laundry services. Food processing plants need steam for cooking and sanitation. Manufacturing facilities often require steam for production processes. When boilers fail unexpectedly, operations may stop entirely. This is why many facilities invest heavily in preventive maintenance programs, water treatment systems, and regular inspections.

Modern inspection technology helps identify corrosion and damage before catastrophic failures occur. Ultrasonic thickness testing measures metal wall thickness to detect thinning caused by corrosion or erosion. Infrared thermography identifies hot spots and insulation problems. Video borescopes allow inspectors to examine internal boiler surfaces without major disassembly. Chemical analysis of boiler water and condensate also provides valuable information about corrosion conditions inside the system.

Water treatment remains one of the most important defenses against industrial boiler damage. Proper treatment programs control oxygen levels, pH balance, dissolved solids, alkalinity, and hardness minerals. Chemical oxygen scavengers help remove dissolved oxygen from feedwater. Neutralizing amines protect condensate systems from carbonic acid corrosion. Phosphate treatments help control scale formation. Without proper water treatment, even well-designed boilers can suffer rapid deterioration.

Routine maintenance and periodic overhauls are essential for maximizing boiler life. Tube replacement, refractory repairs, burner tuning, cleaning, and inspection programs all help reduce the risk of unexpected failures. Many facilities schedule annual shutdown inspections to evaluate internal conditions and repair worn components before problems worsen. Experienced boiler technicians can often identify early warning signs of corrosion or mechanical stress that less-trained personnel might overlook.

Industrial boilers are incredibly durable machines when maintained properly, often operating reliably for decades. However, the harsh combination of heat, pressure, water, steam, combustion gases, and chemicals makes them vulnerable to many forms of damage and corrosion. Oxygen corrosion, scale buildup, erosion, thermal fatigue, acid attack, pitting, and stress cracking all threaten boiler performance and safety. Preventing these problems requires proper water treatment, careful operation, regular inspection, and timely maintenance. Facilities that invest in preventive care not only reduce repair costs but also improve efficiency, increase reliability, and extend the lifespan of these critical systems.

mckennaboiler.com

The post Industrial Boiler Damage Susceptibility appeared first on McKenna Boiler.

One of the most commonly used materials in the construction of commercial boilers is carbon steel. Carbon steel is favored for its strength, durability, and relatively low cost, making it suitable for a wide range of pressure vessel applications. It offers good mechanical properties at moderate temperatures and pressures, which makes it ideal for many commercial heating systems. Grades such as ASTM A516 are specifically designed for pressure vessel use, providing enhanced toughness and resistance to cracking. Carbon steel’s ability to be easily formed and welded also contributes to its widespread use in boiler fabrication.
